UF510 Firmware Installation Manual

Firmware installation (Automized)

Follow the appropriate steps to install and/or update the firmware:

Firmware general installation
  1. Initial installation

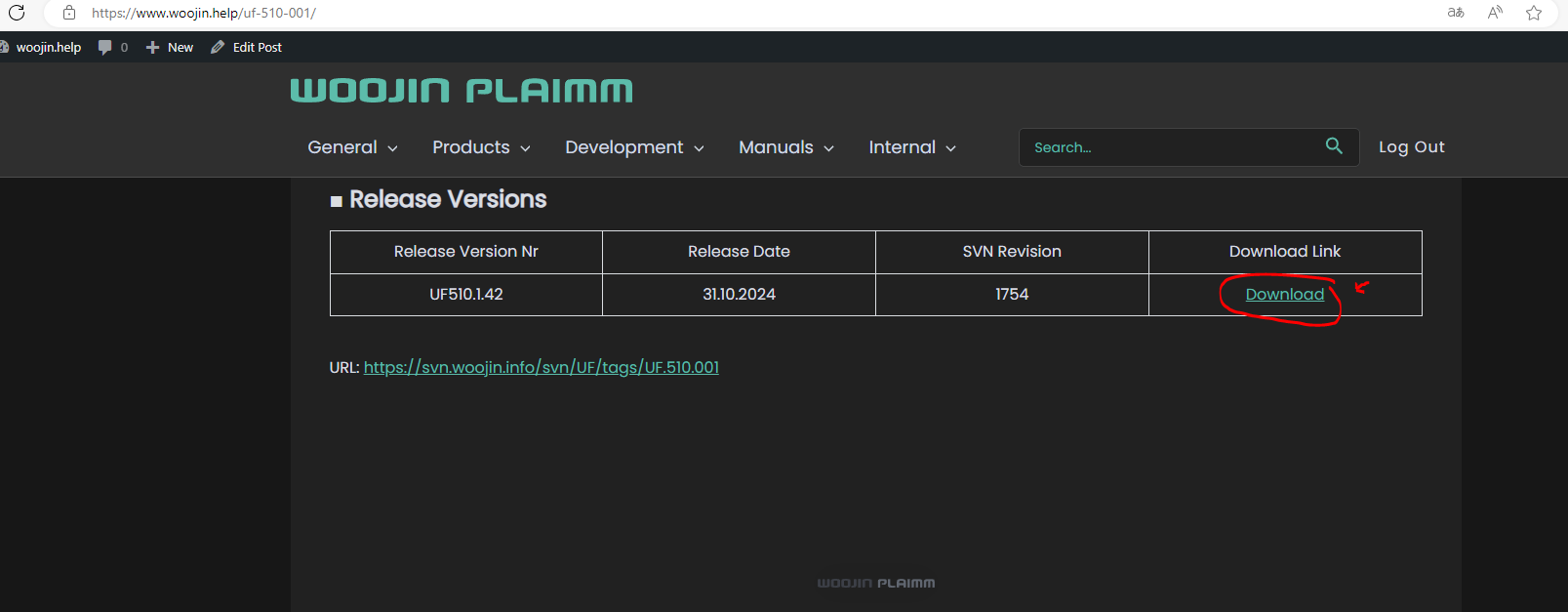

  2. Download new release software version from woojin.help or request it from service engineer

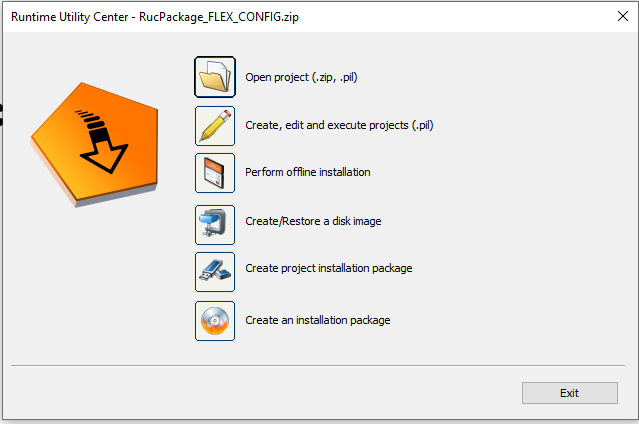

  3. Open Runtime Utility Center (RUC)
  4. Click “Open project” from the menu above and select the software released project downloaded at step 2
  5. Connect CFast card to PC with CF adapter
  6. Click “Perform offline installation” from the menu to generate the data on the CFast card
  7. Click “Install” to proceed
  8. A warning dialog box will be displayed. All data on the memory media is erase when new installation is generated!!!
  9. Choose “Yes” and wait for the installation to be completed.
  10. Connect the CFast card to the X20CPU

Generate update project package

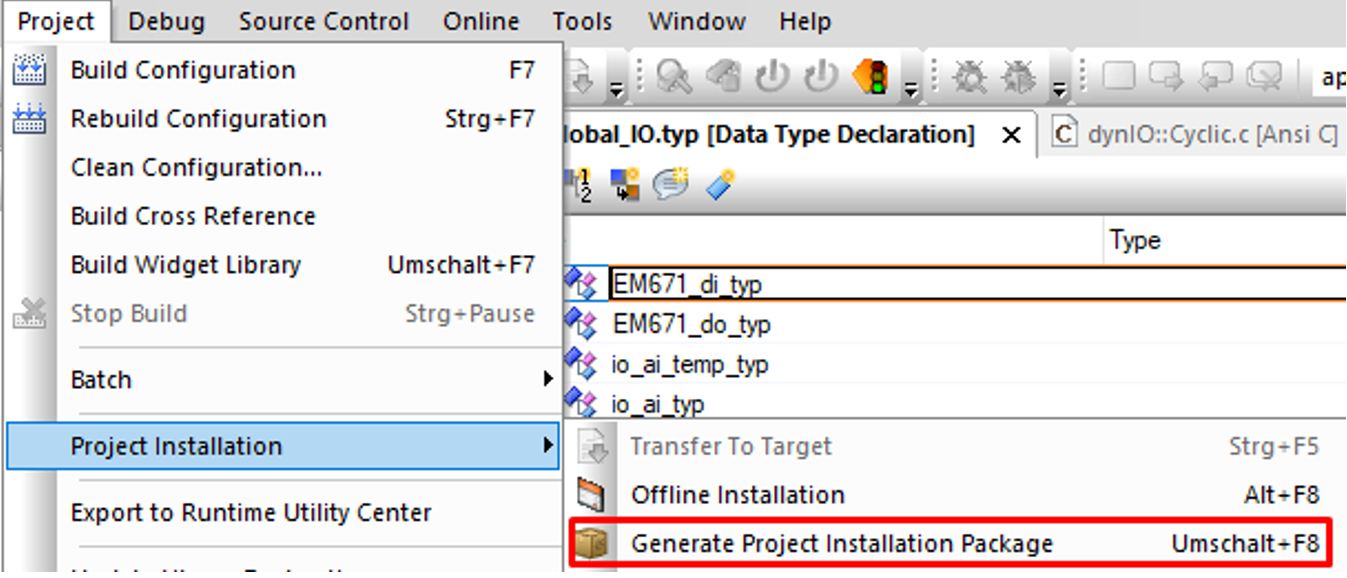

  1. Select “Generate Project Installation Package” from Project -> Project Installation on the Automation Studio menu
  2. Click on “Installation Settings” button

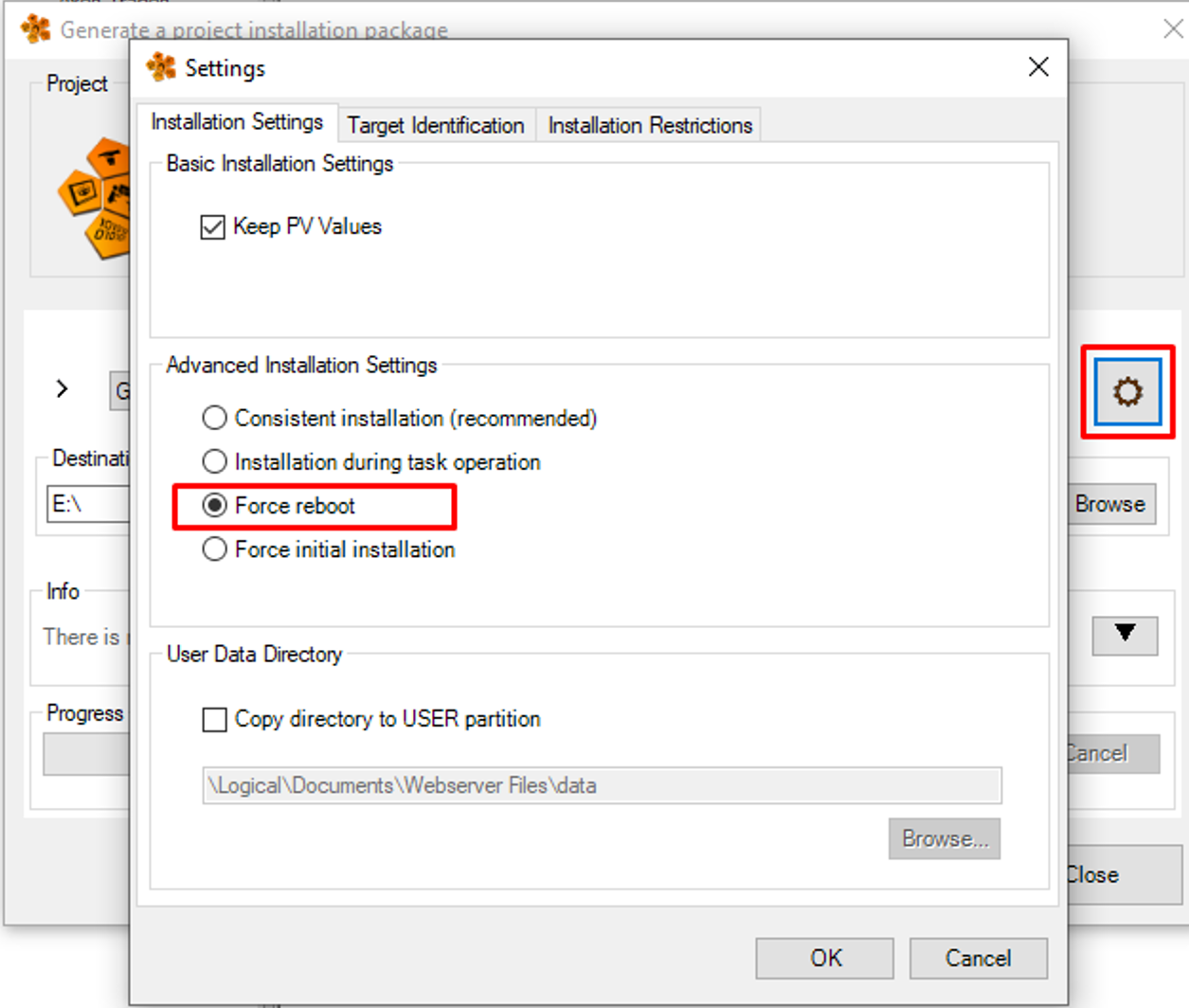

  3. On the “Advanced Installation Settings” dialog section select “Force reboot” check box and then click “OK”
  4. Click “Generate project installation package” and wait untill the generation installation package is finished.

Software update installation
  1. Download update file from server
  2. Copy firmware update files to

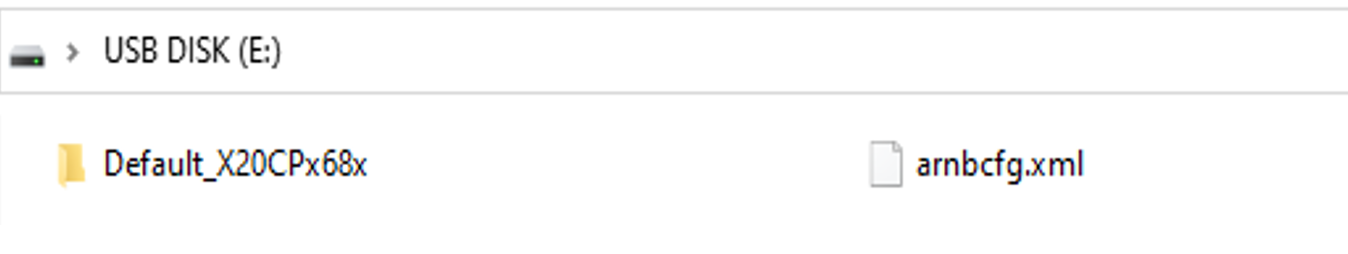

    • USB and plug it to the Panel

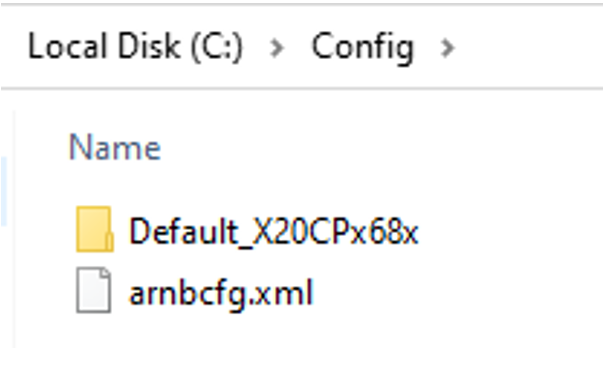

    • or C:\Config (local directory)
  3. Start the update

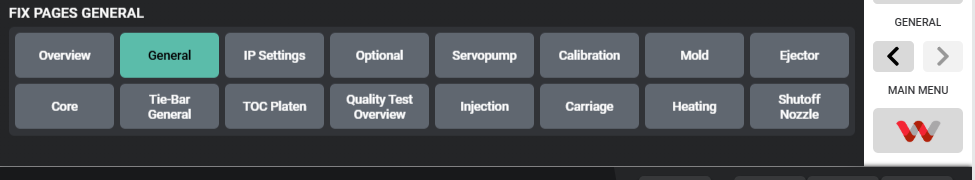

  4. On the Visualisation go to “General” fix page and scroll to bottom

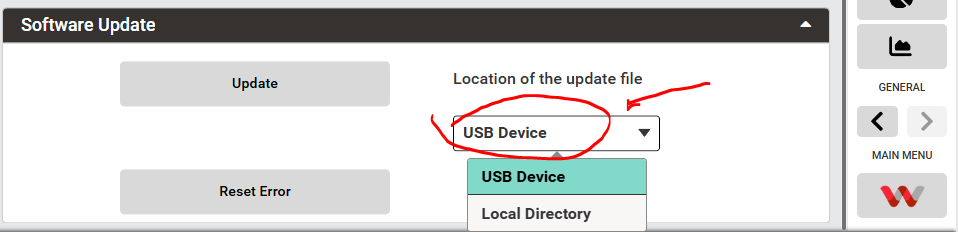

  5. On the “Software Update” section select location of the update file
  6. Click “Update” button
  7. Process of updating starts and the steps described below are automatically executed:
    • Save FIX data
    • Save REC data
    • Save recovery data
    • Start update installation
    • Reboot PLC after installation complete
    • Load FIX data
    • Load REC data
    • Load recovery data
    • Restore IP address
    • Reboot PLC
    • Update done

Firmware installation (CFast card generation)

Installation Requirements:

  • PC with B&R Runtime Center installed
  • Installation file
  • CFast card (only if safe backup required)
  • CFast Card reader

The CFast card must not be removed during operation mode

Follow the steps below to update firmware:

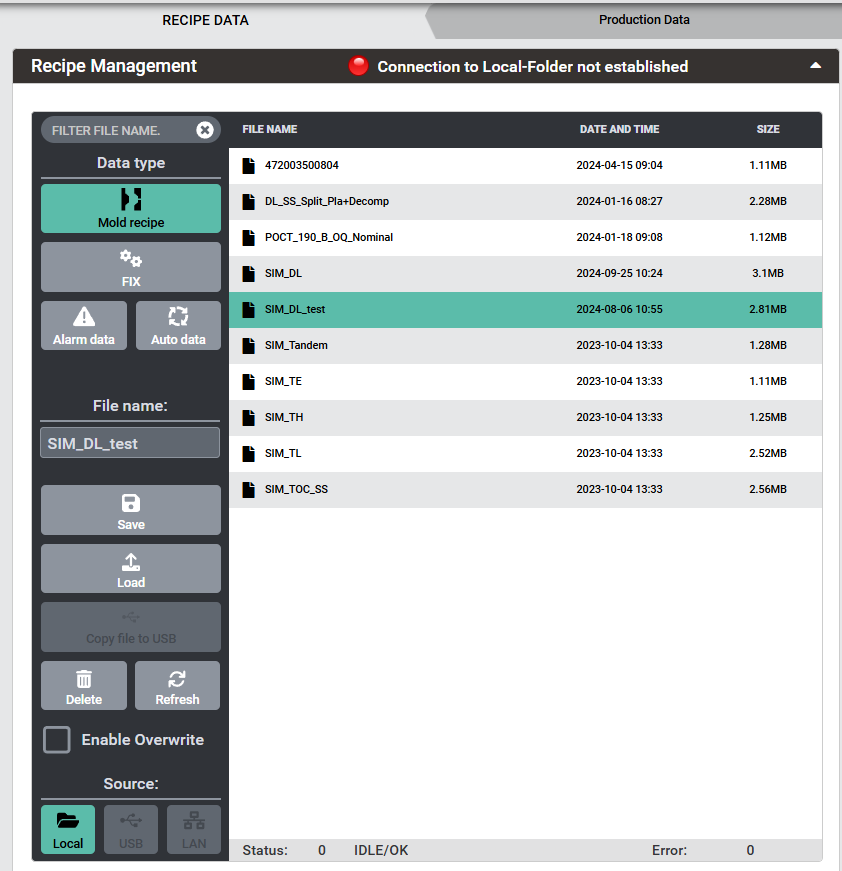

  1. Go to “Recipe data” page
  2. Give some name and save the recepy data.
  3. Save fix data and alarm data as well.

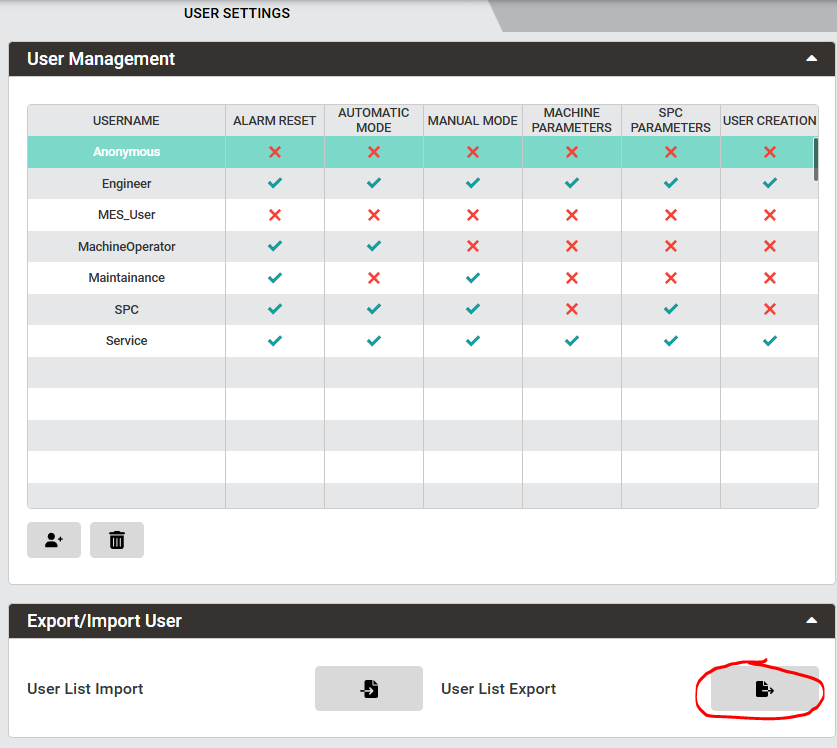

  4. Save user list going to “User Settings” page and click the button from “User List Export”
  5. Switch off machine using the main switch
  6. Remove Compact Flash from X20CPU
  7. Connect Compact Flash card to PC with CF adapter

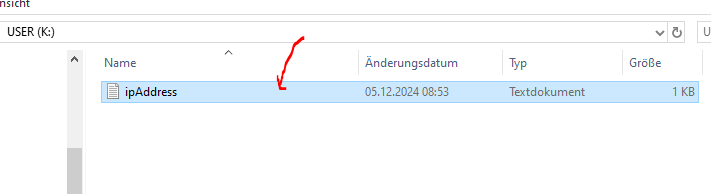

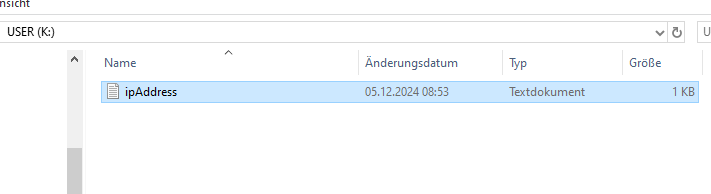

  8. Copy ipAddress.txt file from USER(K:) partition to a local folder on your C:\ drive.
  9. After update the software, the ipAddress.txt file will be lost!
  10. Install new software on application storage
  11. Download new release software version from woojin.help or request it from service engineer
  12. Open the downloaded project from step 11. with the Runtime Utility Center (RUC)
  13. Click “Perform offline installation” to install all the packages on the CFast Card
  14. Click “Install” to proceed
  15. A warning dialog box will be displayed. Choose “Yes” and wait for the installation to be completed.

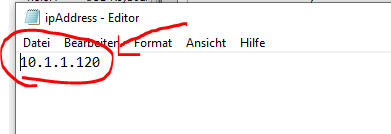

  16. After the installation package is finished put back ipAddress.txt file to Compact Flash (“USER K:” partition) with the correct IP Address
  17. Plug in back the Compact Flash card to X20CPU
  18. Switch on again the machine
  19. During the booting up of the application, IP address will be taked from the ipAddress.txt file
  20. In case the ipAddress.txt will not be found it will automatically be created and ajusted with the default IP address that was configured in the software application
  21. After the visualisation was loaded you have to load fix data, recipe data, alarm data and user data ( which you saved before on the step 1. )
  22. After loading all the data from step 16, a new restart is required!
