This device ensures that parts classified as good or bad based on various measurement data from the machine are automatically routed to their respective collection areas.
1. Machine Option
2. User Settings (Production Control)
- [Checkbox] Air Valve Good/Bad Part Separation
- When this checkbox is enabled, the system activates the air-valve output according to the part-quality judgment.
- When a part is judged as good:
- The good part air valve turns on for 4 seconds, indicating that the gate to the good-part chute is open.
- However, if the separator is already in the Good position, no air-valve output is generated.
- When a part is judged as bad:
- The bad part air valve turns on for 4 seconds, indicating that the gate to the bad-part chute is open.
- Similarly, if the separator is already in the Bad position, no air-valve output is generated.
- [Checkbox] End Position Detection
- This option is enabled when the good/bad part separator is equipped with a completion (end-position) switch.

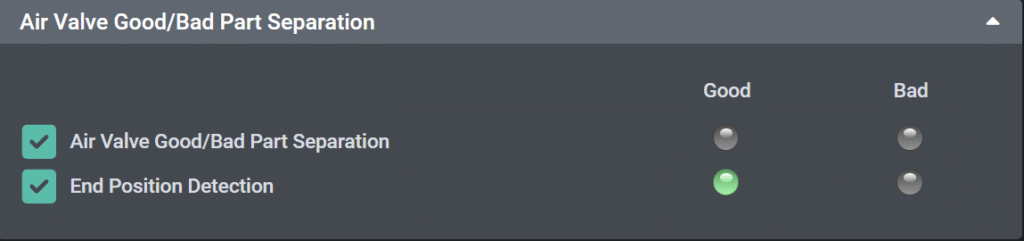

- If the air-valve output is activated for 4 seconds but no completion-switch signal is received, a warning message is triggered.(Picture in below)
- Even if the completion-switch signal arrives, the air valve continues operating for the full preset 4-second duration.
- If this completion-switch option is not used, the completion-switch indicator shown on the screen simply displays which gate—good or bad—is currently considered open based on the timer, rather than an actual physical signal.
