Option: HotWater Unit (06A746)

This function is used to interface with an additional Hot Water Unit (mold temperature control unit).
At the moment, this option is implemented only for injection B

1. Machine Option

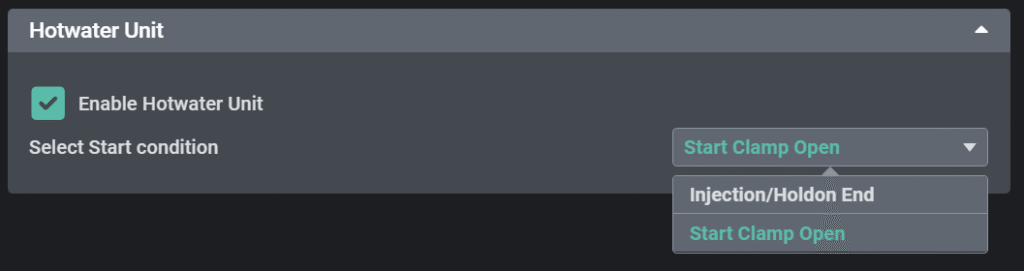

2. User Settings (Injection Settings page)

• Activation
  • The function can be enabled or disabled through the checkbox Enable HotWater Unit.
• IOs : The interface consists of 1 digital input and 1 digital output.
  • Digital Input (injection interlock)
    • Signal: gDI.HotWaterUnitReady
    • Injection operation is only allowed when this input signal is TRUE.
  • Digital Output
    • A 1-second pulse signal is generated at the timing selected in the dropdown menu.
    • Available options:
      • Injection/Hold End
      • Start Clamp Open
