Pressure Control KEB TE

Description:

Core Pressure Control with External Hydraulic Unit. Controlled by KEB Drive with Analog signals for TEA5 machine

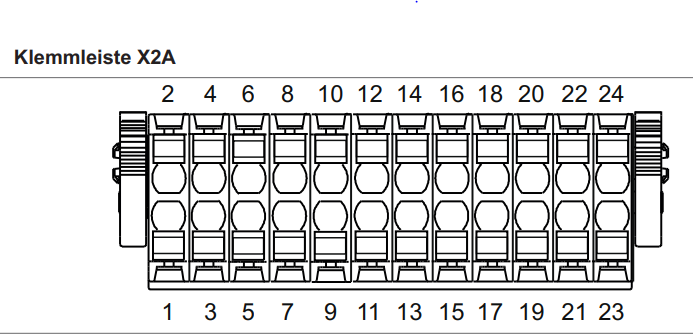

1) Electric connection

Input 1 -> Release Signal -> O2A500_Hyd_Comm.OUT.Release_KEB
Input 3 -> Positive Movement -> O2A500_Hyd_Comm.OUT.PosRotation (Optional)
Input 5-> Negative Movement -> O2A500_Hyd_Comm.OUT.NegRotation (Optional)
Input 18 -> 0 Voltage

Input 1 -> STO1-
Input 2 -> STO1+
Input 3 -> STO2-
Input 4 -> STO2+
Input 7 -> 0 Voltage
Input 8 -> P24V

Input 9 -> 0 Voltage
Input 10 -> Set Speed -> O2A500_Hyd_Comm.OUT.SetSpeed_digit
Input 11 -> 0 Voltage
Output 12 -> Act Speed -> O2A500_Hyd_Comm.IN.ActSpeed_digit

Pressure Sensor Input -> O2A500_Hyd_Comm.IN.ActPressure_digit
Oil temperature Input -> gAI.Temp.Ext_Agg_Oil
Oil Level Sensor Input -> gDI.HydOilLevelLow

2) Option Activation

02A500 – KEB Dorninger_Hyd = 1
Disable Core MC Feedback = 0

3)Parameter List for KEB Drive

00_RD\02_Control\00_Topics\2026\2026_TC01_Pressure_Control_KEB_TEA5

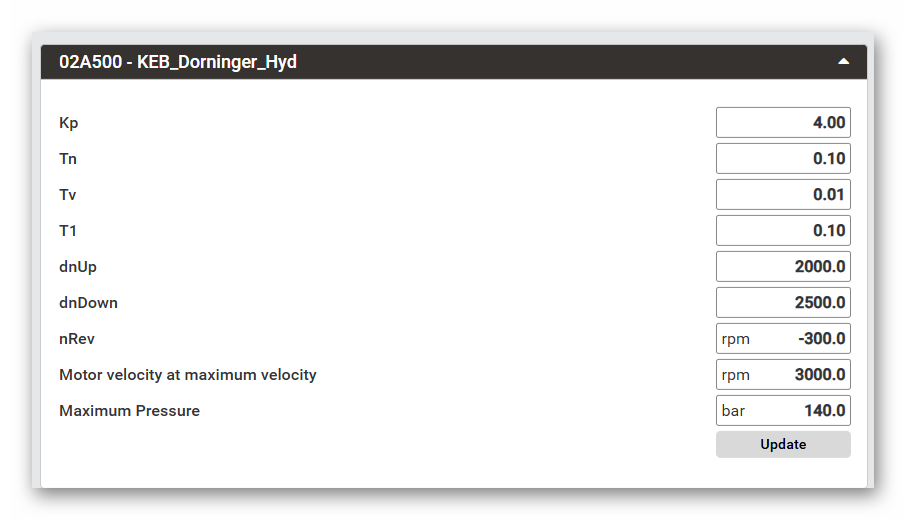

4) Standard Controller Setting

KP = 4.0
TN = 0.1
TV = 0.01
T1 = 0.1
nRev = -300 RPM

Minimum Pressure Controller

KP = 1.0
TN = 0.1
TV = 0.01
t1 = 0.1
